RSTR - Reset Range

When the input logic is ON, the Reset Range (RSTR) instruction turns OFF all of the specified discrete memory locations within the specified range. When the input logic is OFF, the discrete memory locations in the range are not affected.

Parameters:

Note: Use the F9 key (Element Browser) or Down-Arrow key (Auto-Complete) at any time to see a complete list of the memory locations that are valid in the current field of the instruction.

Start  - designates the first discrete memory location of the range. This can be any writable bit location.


End - designates the last discrete memory location of the range. This can be any writable bit location from the same block of bit data specified in the Start parameter and sequentially later in the memory range.

See Also:

• INIT - Initialize Data

• MAPIO - Map Inputs and Outputs


• MEMCLEAR - Clear Memory Range

• MEMCOPY - Copy Memory Range


• MOVE - Move Value

• MOVEBIT - Move Single Bit

• MOVER - Move Range of Values


• REFWRITE - Write Value Indirectly


• RSTR - Reset Range

• SETNUMR - Set Numeric Range

• SETR - Set Range

Related Topics:

• SGRST - Disable Stage

• SGRSTR - Disable Range of Stages

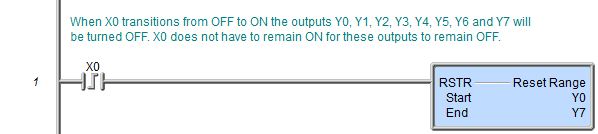

Rung Example:
