Topic: DMD0014

MOVEBIT - Move Single Bit

The Move Single Bit (MOVEBIT) instruction is used to copy the value of a single bit location to a single bit destination location.

Parameters:

Note: Use the F9 key (Element Browser) or Down-Arrow key (Auto-Complete) at any time to see a complete list of the memory locations that are valid in the current field of the instruction.

Source - designates the bit location to be copied. This can be a constant value of 0 or 1, or any readable bit location.

Destination - designates the location where the value will be copied to. This can be any writable bit location.

See Also:

• INIT - Initialize Data

• MAPIO - Map Inputs and Outputs


• MEMCLEAR - Clear Memory Range

• MEMCOPY - Copy Memory Range


• MOVE - Move Value

• MOVEBIT - Move Single Bit

• MOVER - Move Range of Values


• REFWRITE - Write Value Indirectly


• RSTR - Reset Range

• SETNUMR - Set Numeric Range

• SETR - Set Range

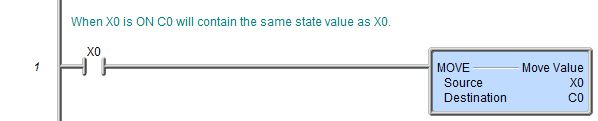

Rung Example:
