Topic: DMD0135

CLAMP - Limit Range



The Limit Range (CLAMP) instruction is used to constrain a memory location so that its value is always within a specified range. This is accomplished by copying the Input value to the Output value using the follow rules:


  • if the Input value is greater than or equal the High limit the Output value will be set to the High value


  • if the Input value is between the High and Low limits the Output value will be set to the Input value


  • if the Input value is less than or equal to the Low limit the Output value will be set to the Low value



Parameters:

Note: Use the F9 key (Element Browser) or Down-Arrow key (Auto-Complete) at any time to see a complete list of the memory locations that are valid in the current field of the instruction.



Input - designates the location that contains the value to clamp. This value can be any readable numeric location



High - designates the maximum allowable value for the Input variable. The High value can be any constant value, or any readable numeric location



Low - designates the minimum allowable value for the Input variable. The Low value can be any constant value, or any readable numeric location



Output - designates the location to store the clamped output value. This value can be any writable numeric location. Note: this can be the same element as the Input parameter.



Status Display:

When the ladder status is ON, in addition to the standard status values being displayed, the Limit Range instruction also displays a small trend that shows the instruction's values graphically.



To disable the display of the trend go to the View-> Options menu, select the Ladder tab, then uncheck the Show Trend Status selection.

See Also:

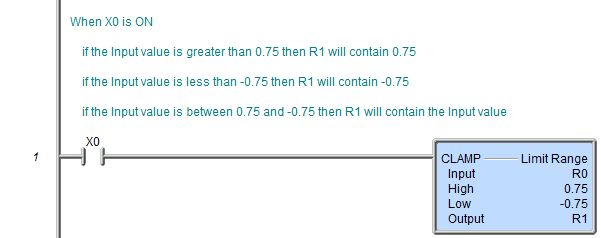

Rung Example:
