Topic: DMD0256

System Status

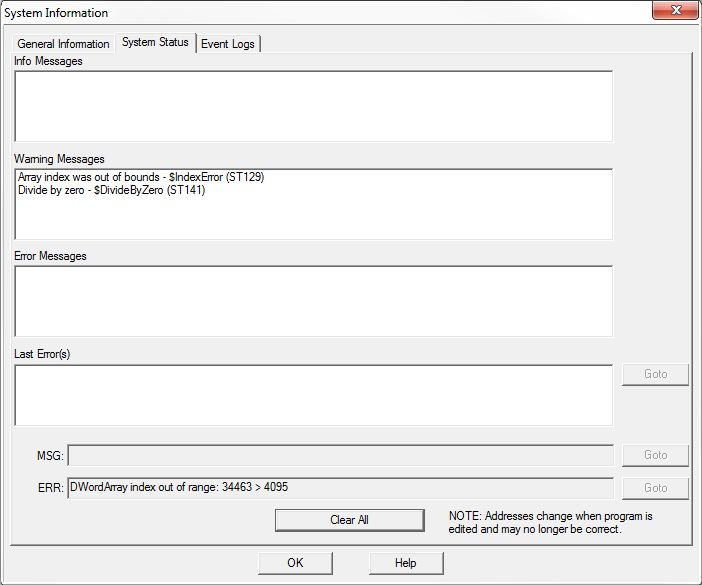

The Do-more controller internally stores a record of all Information-Level, Warning-Level, and Error-Level messages generated while it is running. The System Status tab displays these messages. Any time  Info  or  Warning  or  Error  appear on the Status Bar a corresponding message has been generated that can be viewed on the System Status tab.

Info Messages - displays the last system generated Information-level messages

Warning Messages - displays the last system generated Warning-level messages

Error Messages - displays the last system generated Error-level messages

Last Error(s) - displays the last 5 system generated Error codes

Predefined strings called LastERR0 - LastERR7 and LastMSG0 - LastMSG7.

MSG: - displays the current contents of the system-generated MSG string. Clicking the Goto button will open the code-block and position the edit cursor on the rung that contains the programming element that is generating the Message.

ERR: - any time an Info, Warning, or Error message is generated, the ERR string will contain additional information about that message. Clicking the Goto button will open the code-block and position the edit cursor on the rung that contains the programming element that is generating the Error.

Clear All - Click the Clear All to clear all of the lists on the dialog.
