Topic: DMD0029

SWAPB - Swap Bytes

The Swap Bytes (SWAPB) instruction is used to swap the Bytes and/or the Words in the designated range of locations. This instruction will begin at the first Source location and swap the Bytes and/or Words, then store the result in the first destination location. This operation will be repeated the number of times specified by the Elements value on successive Source locations.

Parameters:

Note: Use the F9 key (Element Browser) or Down-Arrow key (Auto-Complete) at any time to see a complete list of the memory locations that are valid in the current field of the instruction.

Source -  designates the first location to operate on. This can be any readable numeric block location

Destination - designates the first location to store the result. This can be any writable numeric block location.

Note: Source and Destination do not have to be the same Type but they must be the same Element Size, that is, they both must consist of Word (16-bit) or DWord (32-bit) size elements. If the Source and Destination are different sizes use the Translate from Do-more (PUBLISH) and Translate to Do-more (SUBSCRIB) instructions to perform the Byte Swap.

Elements - specifies how many successive Word or DWord elements the Swap Bytes instruction will operate on

Swap Byte - select this option to swap the Bytes in each of the Words or DWord elements

Swap Word - select this option to swap the Words in each of the DWord elements

See Also:

• STR2INT - Convert String to Integer

• STR2REAL - Convert String to Real


• SWAPB - Swap Bytes

Related Topics:

• PUBLISH - Translate from Do-more

• SUBSCRIB - Translate to Do-more


• STREAMIN - Stream In Data from Device

• STREAMOUT - Stream Out Data to Device


• PACKETIN - Input Data from Packet Device

• PACKETOUT - Output UDP to Packet Device


• MRX - Modbus Network Read

• MWX - Modbus Network Write


• PEERLINK - Share Global Data

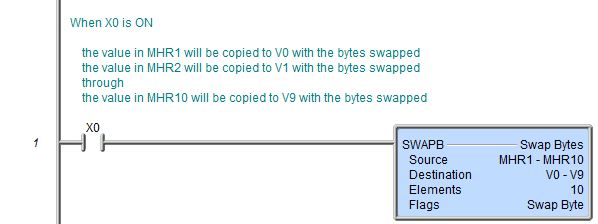

Rung Example:
