Topic: DMD0151

RESTART - Restart Program or Task

The Restart Program or Task instruction (RESTART) is used to stop a Program or Task that is currently running, and then restart it so that is begins running from the beginning.



If the specified Program contains any stages that are currently enabled, those stages will be disabled, and the Initial Stage in that Program will be re-enabled.



Parameters:

Note: Use the F9 key (Element Browser) or Down-Arrow key (Auto-Complete) at any time to see a complete list of the memory locations that are valid in the current field of the instruction.



Code Block - designates the Code Block (Program or Task) to be restarted.





Status Display:

The gray triangle at the right end of an input leg indicates the input is edge triggered.



See Also:

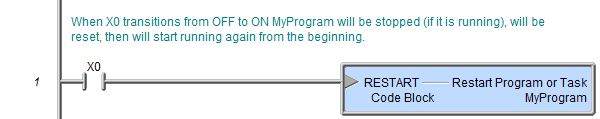

Rung Example:
