Topic: DMD0105

MAX - Maximum Between Two Expressions

This instruction can only be used in the Expression parameter of the Calculate Expression (MATH) instruction.

The Maximum Between Two Expressions (MAX) instruction determines the maximum value between two expressions.

The parameter list consists of all the text between the bounding parentheses. The parameter list must consist of 2 parameters separated by a comma. Each parameter is an expression which can be a constant value, a bit or numeric memory location, an arithmetic expression, and/or mathematical function or other expressions up to a maximum of 1024 characters. Expressions can be nested, so use of parentheses is recommended to ensure proper evaluation order.

See Also:

• MIN - Minimum Between Two Expressions

• MAX - Maximum Between Two Expressions


• STDEVPR - Population Standard Deviation of a Range

• STDEVR - Sample Standard Deviation of a Range

Related Topics:

• MATH - Calculate Expression


• AVGR - Average of a Range of Values


• MINR - Minimum Value Across a Range of Values

• MAXR - Maximum Value Across a Range of Values


• SUMR - Sum of a Range of Values

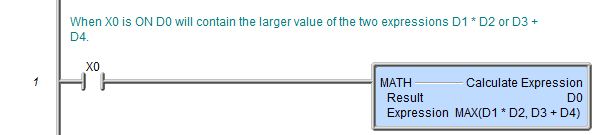

Rung Example:
