DECODE - Decode to Set Bit

The Decode to Set Bit instruction (DECO) will set the bit at the specified Bit Position Value ON, and all of the other bits will be set OFF.







For example, for a Bit Position Value of 12, the Decode to Set Bit instruction would output the following bit string: 0000 0000 0000 0000 0001 0000 0000 0000.



Note: Decode to Set Bit can only operate on Bit Position Values in the range of 0-31 (0-0x1F). If the Bit Position Value is greater than 31, the Output Bit Pattern will be 0 and the $OutOfRange (ST132) will be ON.



Parameters:

Note: Use the F9 key (Element Browser) or Down-Arrow key (Auto-Complete) at any time to see a complete list of the memory locations that are valid in the current field of the instruction.



Bit Position Value - specifies the position value of the bit to turn ON. This can be any constant value in the range of 0-31 (0x0 -0x1F) or any readable numeric location containing a value in that range.



Output Bit Pattern - designates a memory location to store the result. This can be any writable numeric location.



See Also:



Related Topics:

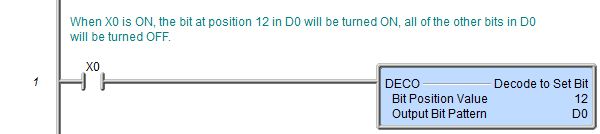

Rung Example:
